Aquamax KF PRO Oil Automatic

Karl-Fischer-Titrators

Downloads

Karl-Fischer-Titrators Overview Link Icon

Aquamax KF PRO OIL Link Icon

Aquamax KF PRO OIL Automatic

Product description

The Aquamax KF PRO Oil is also available as an automatic version with sampler for oils. An integrated scale determines exactly the sample amount. This makes it easy to handle large quantities of samples:

- Draw up oil samples in disposable syringes and close with caps
- Stick on sample-specific barcode
- Place syringes in the magazine and place in the autosampler
- Start automatic measurement
- Read off and save results

The sampler has space for 200 sample syringes in five magazines. The equipment includes two additional magazines that can be loaded with samples for preparation. Measured magazines can be removed individually and exchanged with filled ones. Continuous measurement series are thus possible.

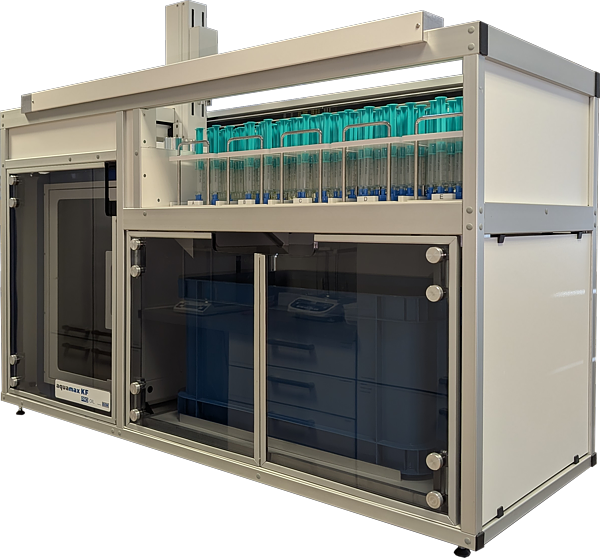

Aquamax KF PRO Oil AUTOMATIC with autosampler for oils

Sample supply

The oil samples are filled into disposable syringes of 5 mL each. The tips are sealed against ambient moisture with sealing caps.

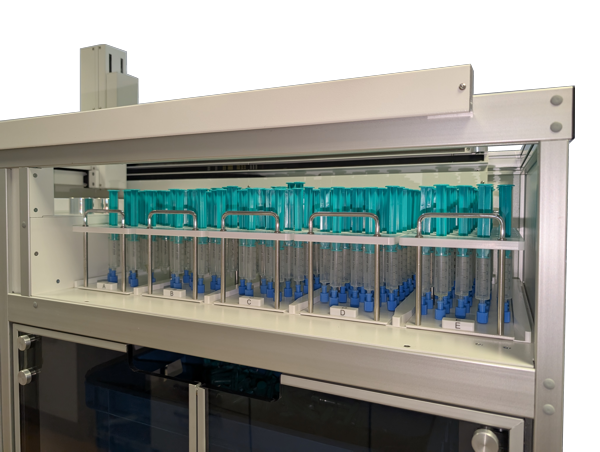

The sampler has a total of seven magazines with 40 places each. The autosampler can hold five magazines at the same time. The magazines can be placed anywhere.

The syringes are labelled with barcodes to identify the sample.

After the analysis, the empty syringes are transported to a collection container.

Multiple measurements of the same sample from different syringes can be performed.

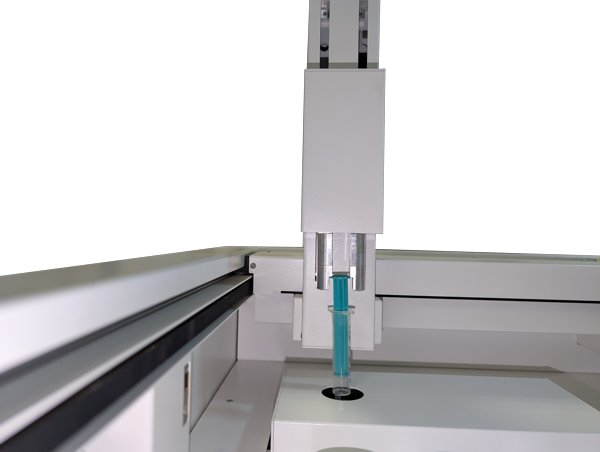

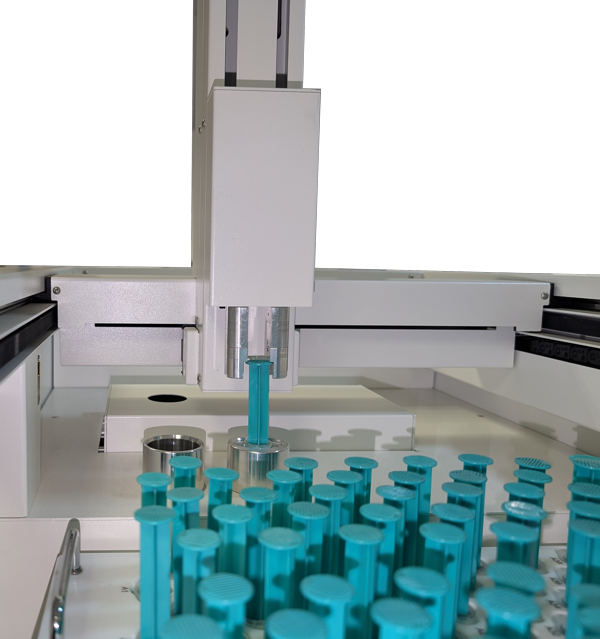

Gripper arm and dosage opening of the sampler

Features

280 sample places in 7 magazines (5 magazines in the unit and 2 for preparation)
Magazines can be removed individually and placed as desired
Sample recognition via barcode system
Automatic determination of the dosed oil volume
Automatic ejection of the measured syringes
Large-volume collection container for empty syringes and caps
