Titramax VT ACID/BASE

Product description

The Titramax VT ACID/BASE is suitable for determination of acids and bases, buffer capacities, carbonates, bicarbonates and other ions in water samples.

Among other things, the titrator fulfils the requirements of the standards ASTM D 1067, ASTM D 1121, DIN 38409-7, DIN EN ISO 787-4, DIN ISO 125, ISO 10539.

The measurement uses a volumetric titration method with with sulphuric acid or hydrochloric acid or sodium hydroxide or potassium hydroxide solution. Once the water sample is dosed into the provided solution, the titration with the titrant starts. The user has to enter the sample weight into the menu. The titration speed is precisely adjusted to the reaction rate by control algorithms. The titration is performed automatically until the endpoint indication of measurement.

At the end of the measurement, rhe result is displayed in the selected unit, other customized units are possible.



Titramax VT ACID/BASE



Advantages

• Complete measuring station for the desired parameter
• Fully-automatic volumetric titration
• Precise adjustment of the titration parameters by control algorithms
• Preset measurement method allows an immediate start
• The result output can be adjusted to your needs by using a formula generator



Applications

Acid/base titrations are the basis for the adjustment of buffer solutions, the monitoring of foodstuffs, pharmaceuticals, feedstuffs or also for the correct dosing of chemicals in water and wastewater treat-ment, e. g. for softening and flocculation.

The Titramax VT ACID/BASE is suitable for analysis of

• drinking water, surface water, seawater
• technical waters, boiler water, cooling water
• solutions for pharmaceuticals
• extracts from solids such as soils, building materials, waste, foodstuffs, feedstuffs





Titration graph of a sample



Features

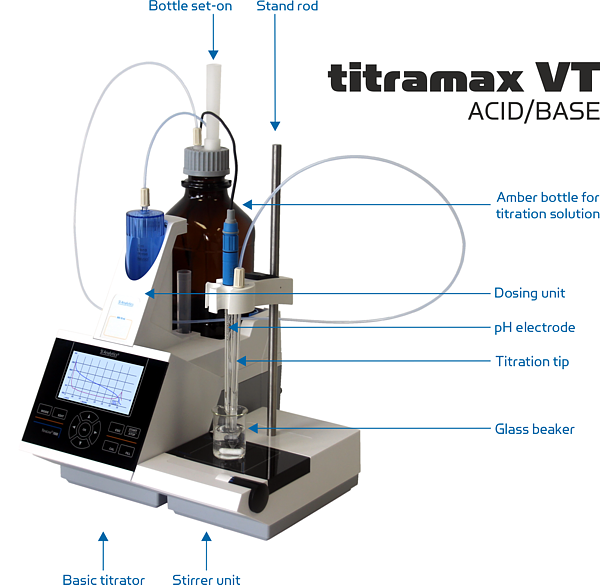

The Titramax VT ACID/BASE consists of

• an automatic volumetric titrator with potentiometric pH indication and integrated temperature sensor,
• a titration vessel with stirrer unit.

The analysis is based on

• an acid-base-titration in an aqueous medium,
• a precise indication by a selective electrode, which is stable over long periods.

Steps of the analysis

1. Calibration of the electrode
2. Standardization of the titration solution
3. Titration of water sample





Titramax VT ACID/BASE
